JULKAR NAEEMSTRUCTURAL STEEL DETAILERInstitutional / Multi-storey steel frame
A three-storey government office extension with a stair, mezzanine and shed, coordinated across two building portions in Khilgaon, Dhaka. Recorded scale: 942 m² and 75 t of steel.
MODEL GALLERY

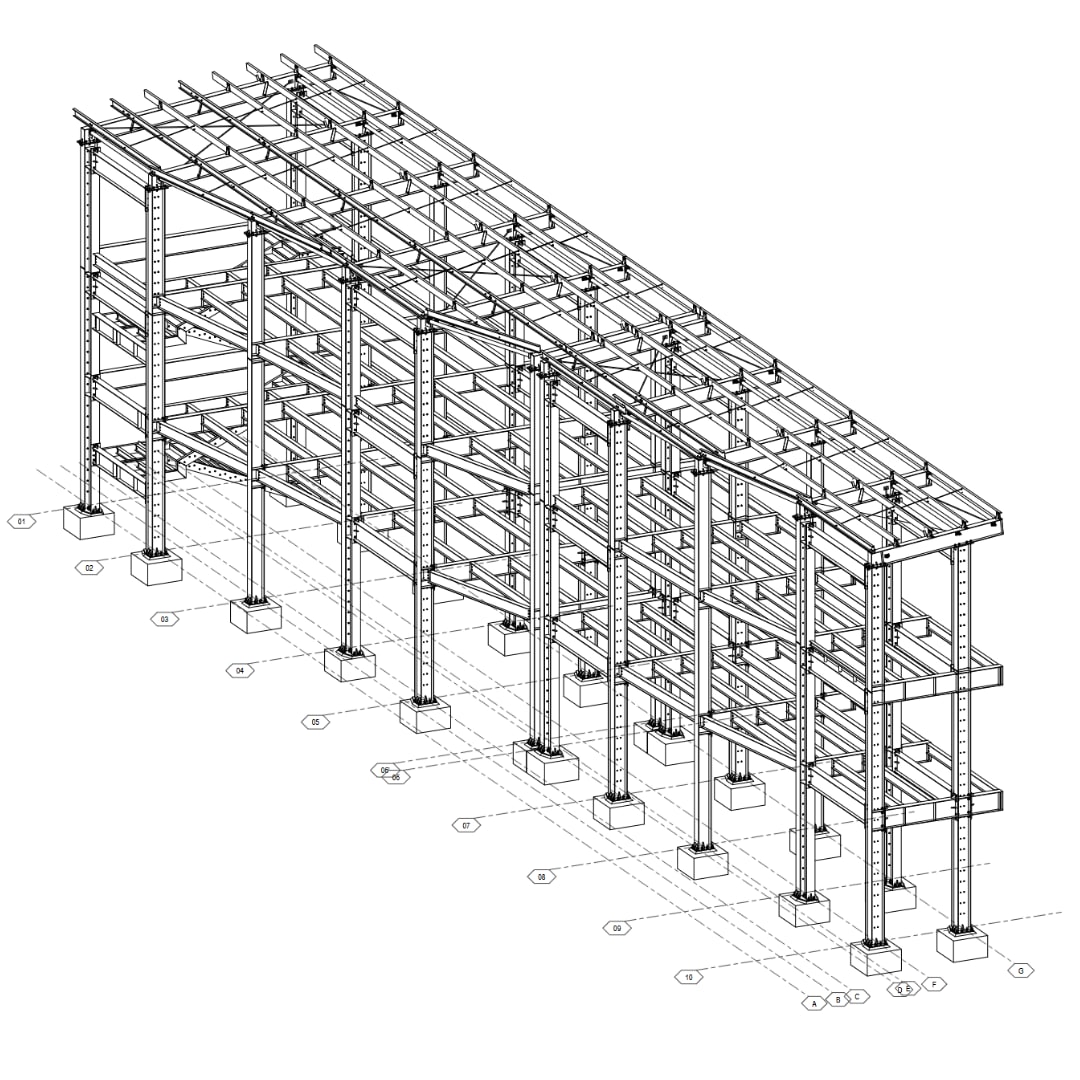

7 verified 3D views. Select any image to inspect model details.
Only selected 3D screenshots and 3D drawings are shared here. Detailed fabrication, connection and erection drawing sheets remain private. Project files are shared only through agreed, authorised arrangements.
01 / PROJECT OVERVIEW
The office extension combines a stair, mezzanine floor and shed in a narrow, complex space across two building portions. Its recorded scope includes the main structure, building extension and stair.
02 / CHALLENGE & CONSTRAINTS
The narrow site and the relationship between two building portions, stair, mezzanine and shed create several geometry and access interfaces.
03 / DETAILING APPROACH
The recorded project description identifies a coordinated multi-storey steel frame. The public views show how the extension framing, stair and mezzanine relate within the constrained space.
04 / FABRICATION & CONSTRUCTABILITY CHECKS
These interfaces call for careful review of floor levels, stair clearances, member orientation, connections and drawing clarity against approved information.
05 / DELIVERABLES
The exact project deliverables are not publicly confirmed. Depending on an agreed scope, typical outputs for this type of steelwork may include a coordinated Tekla model, relevant drawings and material reports.
06 / PRACTICAL TAKEAWAY
A coordinated model makes the junctions between the extension, mezzanine and stair easier to review before fabrication information is issued.
