01 / PROJECT OVERVIEW
Confirmed project scope and model context.
The recorded scope covers a maintenance walkway, handrails and stair/access steel, with a caged ladder visible in the public model views. The steelwork covers 35 m² and 4.4 t.
Access steel / Platforms & walkways

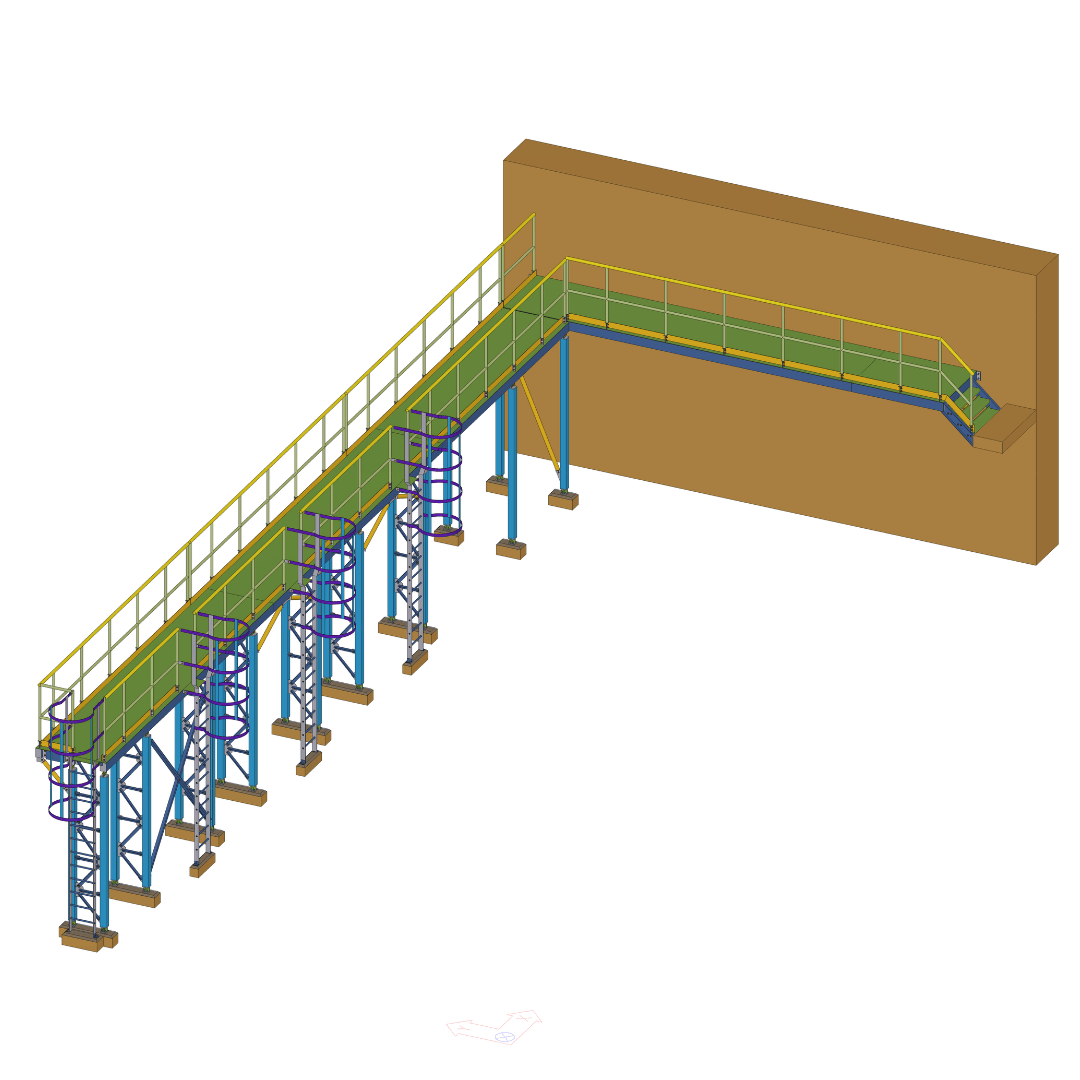

Maintenance Walkway with Caged Ladder
Maintenance-access steelwork in Chattogram comprising a walkway, caged ladder and handrails. Recorded scale: 35 m² and 4.4 t of steel.
MODEL GALLERY
Explore the authentic geometry.

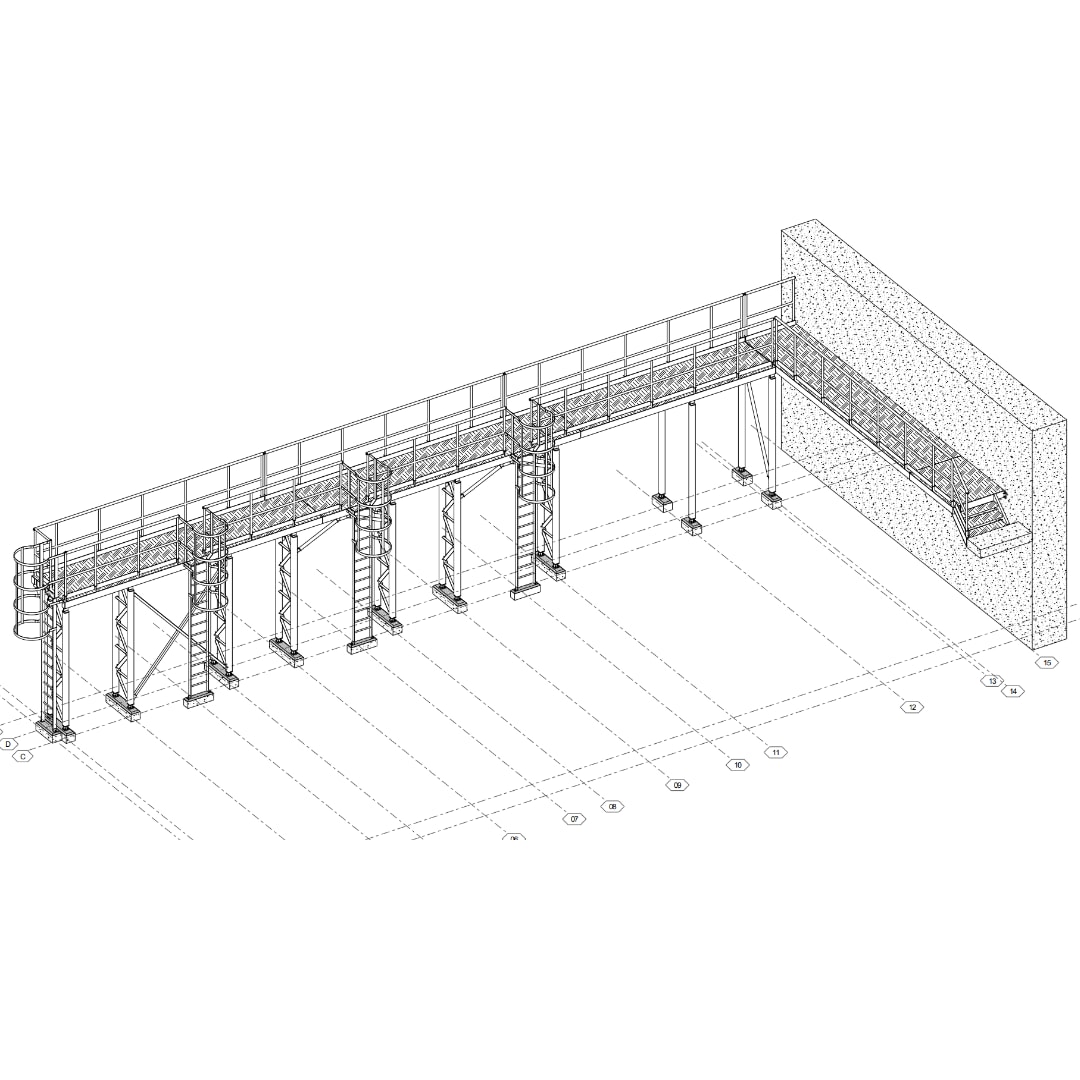

8 verified 3D views. Select any image to inspect model details.
Only selected 3D screenshots and 3D drawings are shared here. Detailed fabrication, connection and erection drawing sheets remain private. Project files are shared only through agreed, authorised arrangements.
02 / CHALLENGE & CONSTRAINTS
Geometry, access and interfaces
Walkway framing, handrails, support steel and the caged-ladder access point create connected access and support interfaces.
03 / DETAILING APPROACH
Model coordination approach

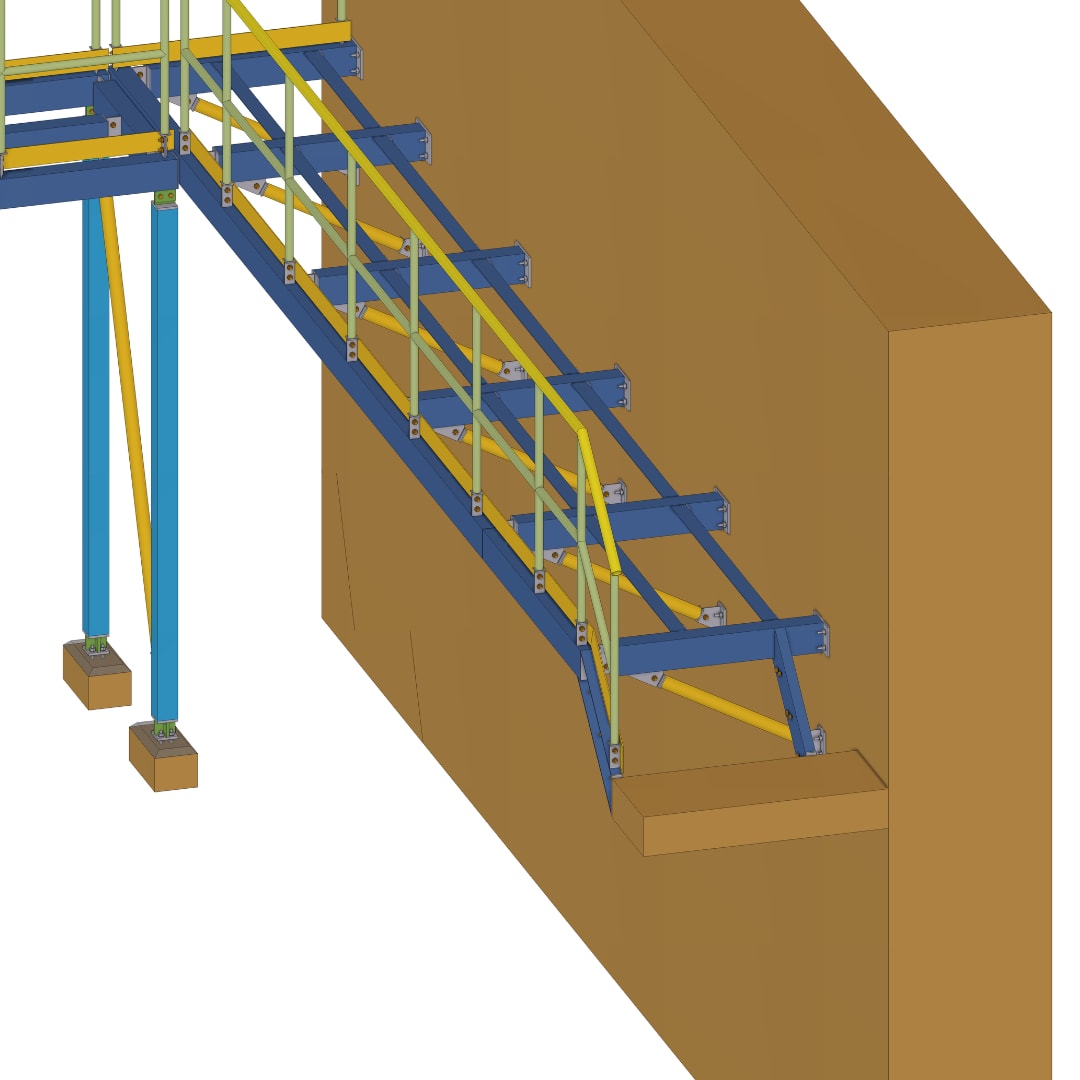

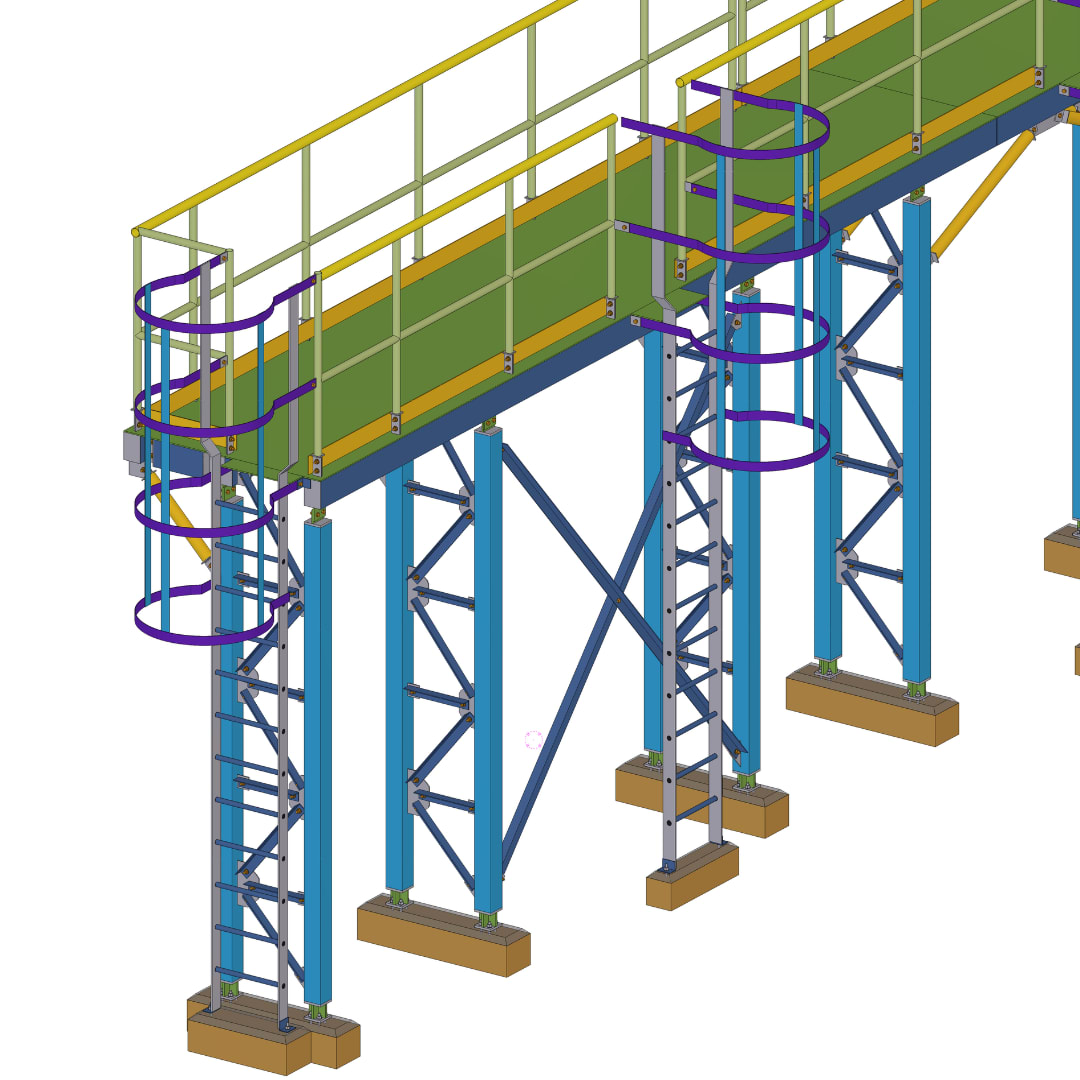

The public views follow the maintenance route and show how the walkway, handrails and ladder meet their supporting frame.
04 / FABRICATION & CONSTRUCTABILITY CHECKS
Practical checks guided by the model
These interfaces call for review of access clearances, handrail continuity, support orientation, bolt access and drawing clarity.
05 / DELIVERABLES
Typical Detailing Outputs
The exact project deliverables are not publicly confirmed. Depending on an agreed scope, typical outputs for this type of steelwork may include a coordinated Tekla model, relevant drawings and material reports.
06 / PRACTICAL TAKEAWAY
Fabrication-First Insight
Tracing the access route through the model helps reveal geometry and coordination questions at ladders, turns and handrail interfaces.
