JULKAR NAEEMSTRUCTURAL STEEL DETAILERInfrastructure / Braced support structures
A flyover support structure in Hong Kong, China, with a braced main frame, platform and supporting steelwork. The recorded project covers 110 m² and approximately 70 t of structural steel.
MODEL GALLERY

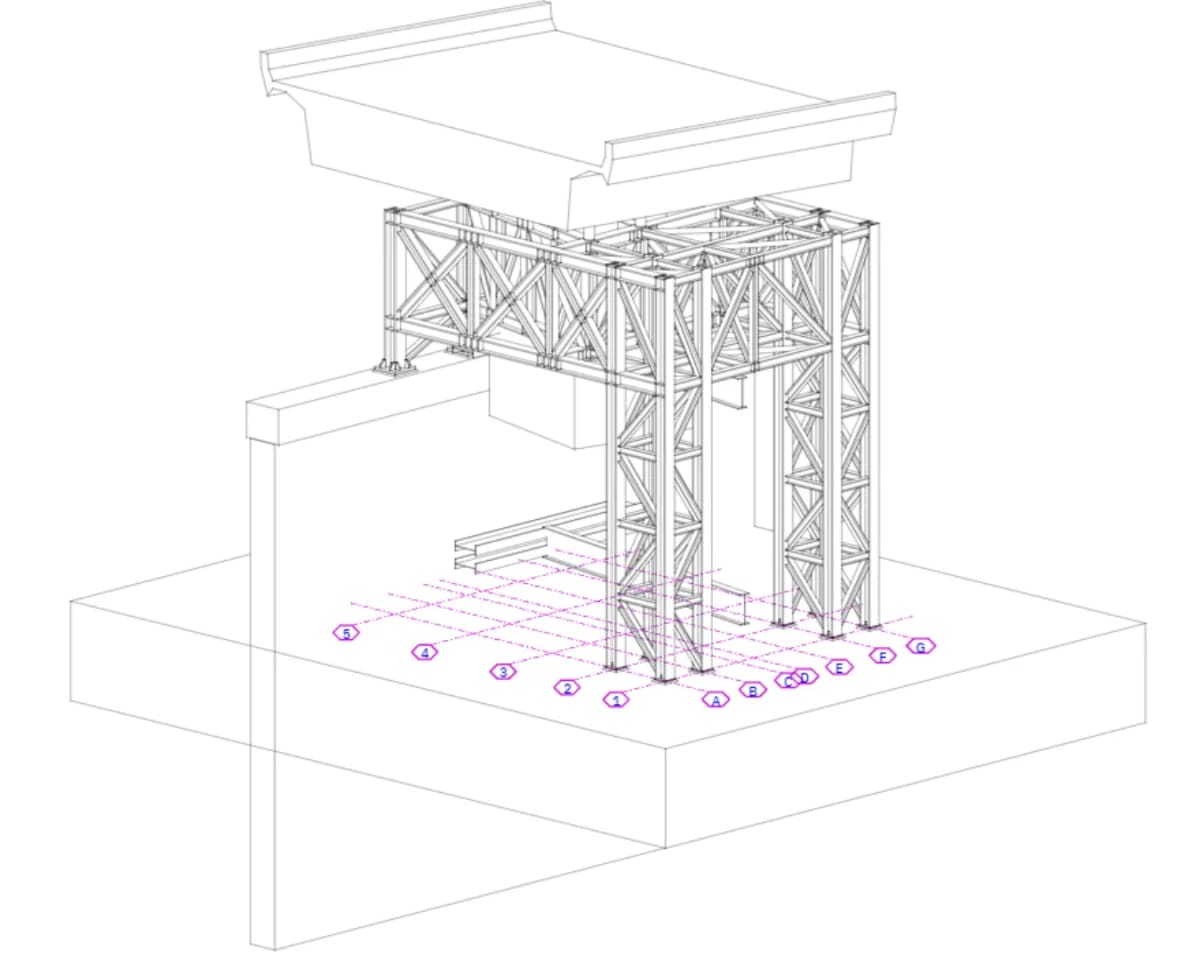

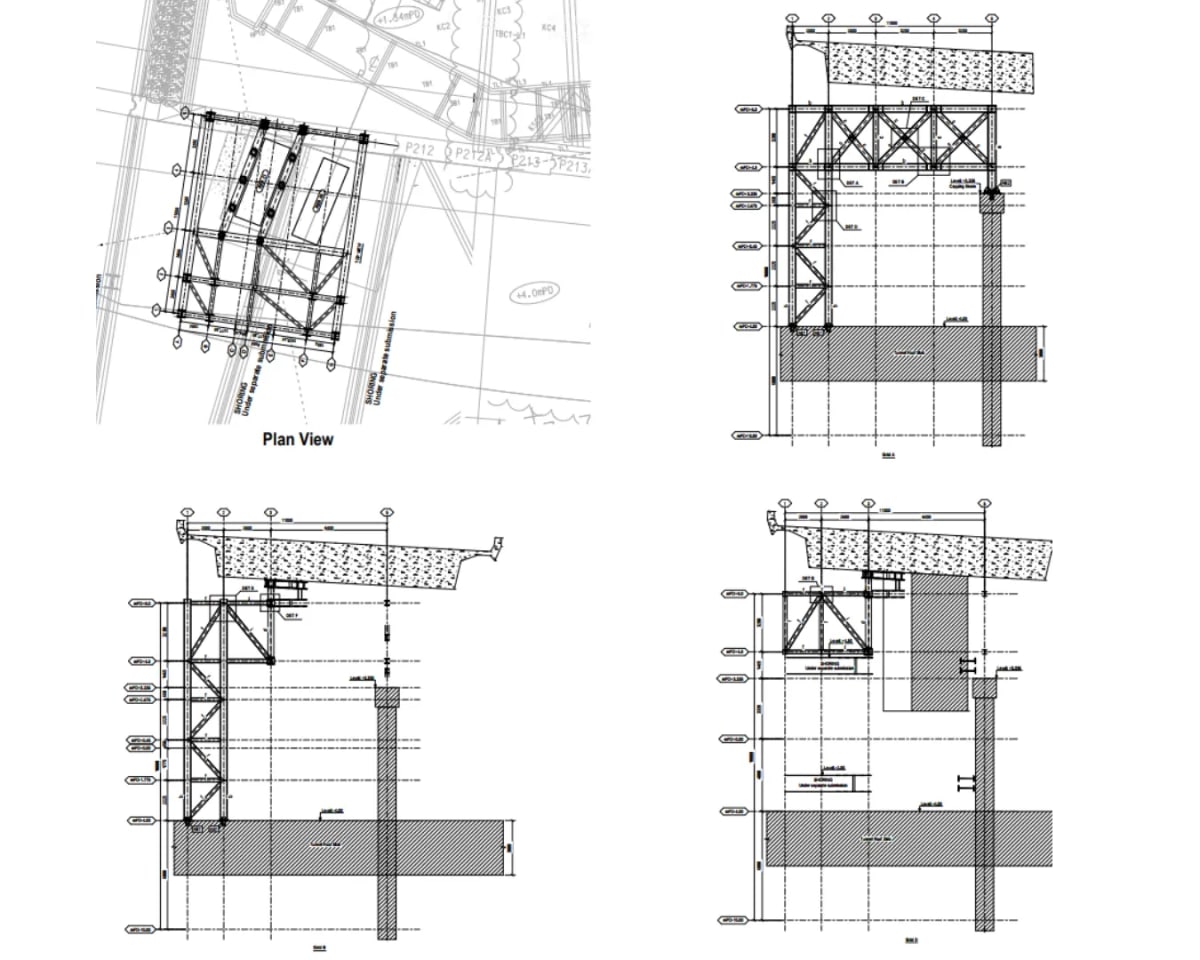

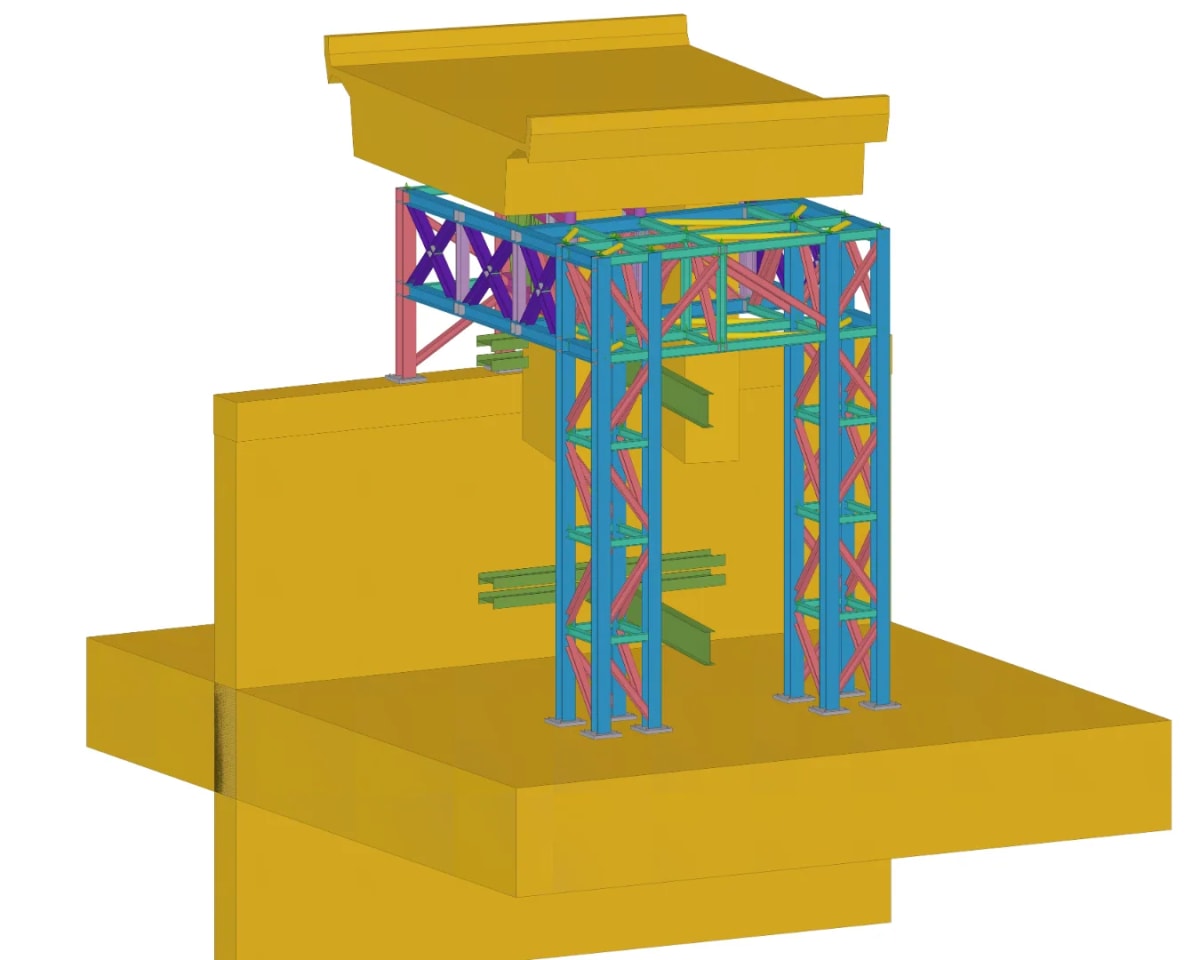

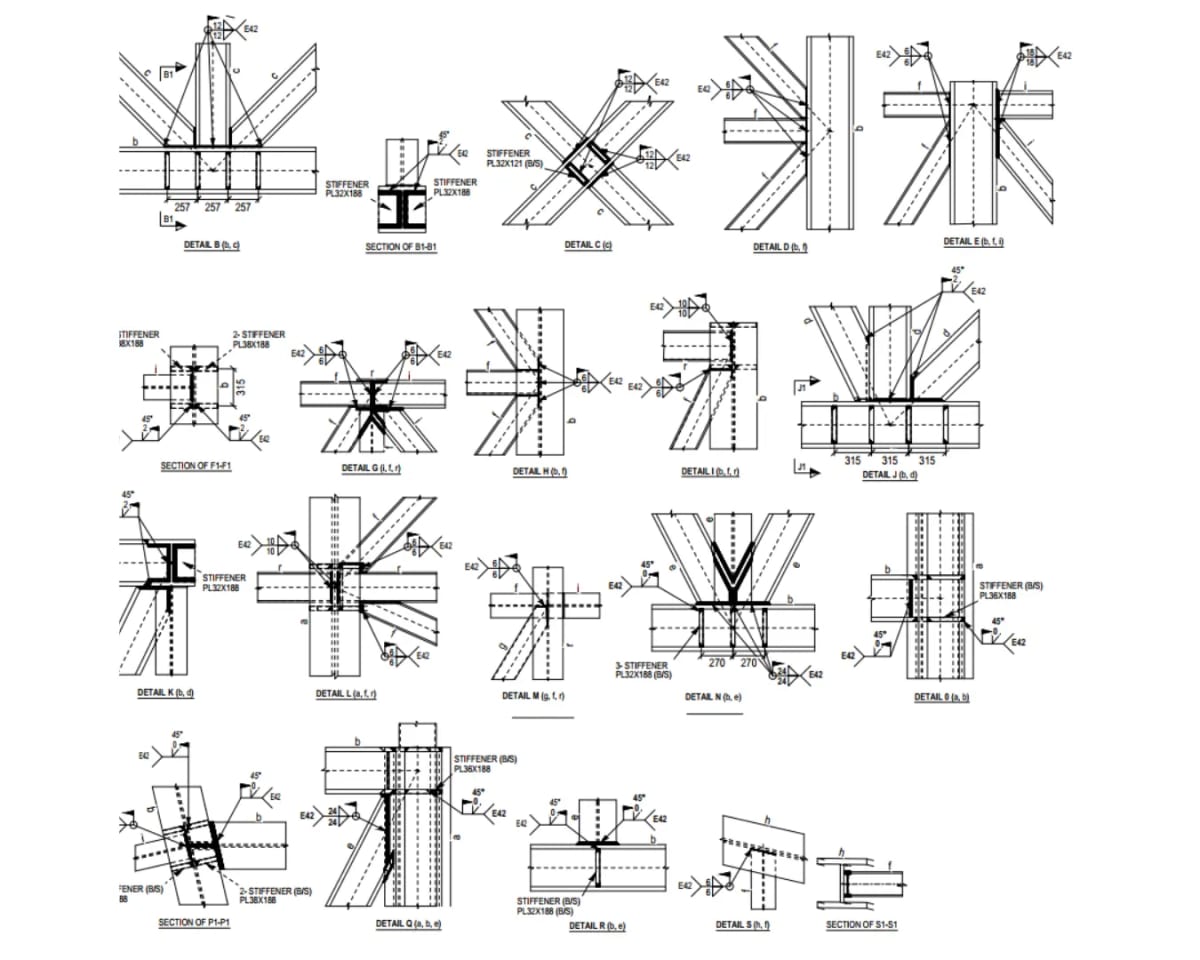

4 verified 3D views. Select any image to inspect model details.
Only selected 3D screenshots and 3D drawings are shared here. Detailed fabrication, connection and erection drawing sheets remain private. Project files are shared only through agreed, authorised arrangements.
01 / PROJECT OVERVIEW
This international steel-detailing project used Tekla Structures 2020 for a flyover support structure. The recorded scope includes the main braced frame, platform and supporting steelwork. All connections were specified as site-welded, requiring close coordination with the structural engineers.
02 / CHALLENGE & CONSTRAINTS
The site-welded connection requirement made coordination between the supporting frame and the structural engineers central to the detailing work.
03 / DETAILING APPROACH
The main braced frame, platform and supporting steelwork were detailed in Tekla Structures 2020. Connection requirements were resolved through technical collaboration with the structural engineers.
04 / FABRICATION & CONSTRUCTABILITY CHECKS
The recorded coordination focused on the site-welded connections and how the platform and supporting steelwork meet the main braced frame.
05 / DELIVERABLES
The exact project deliverables are not publicly confirmed. Depending on an agreed scope, typical outputs for this type of steelwork may include a coordinated Tekla model, relevant drawings and material reports.
06 / PRACTICAL TAKEAWAY
For a site-welded support structure, connection requirements and frame geometry need to be coordinated together before the detailing is issued.
